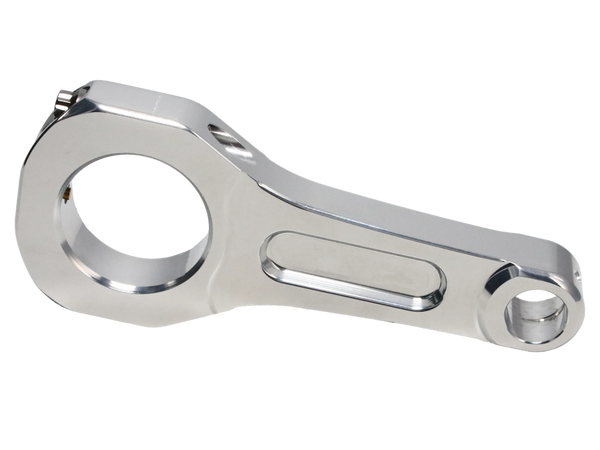

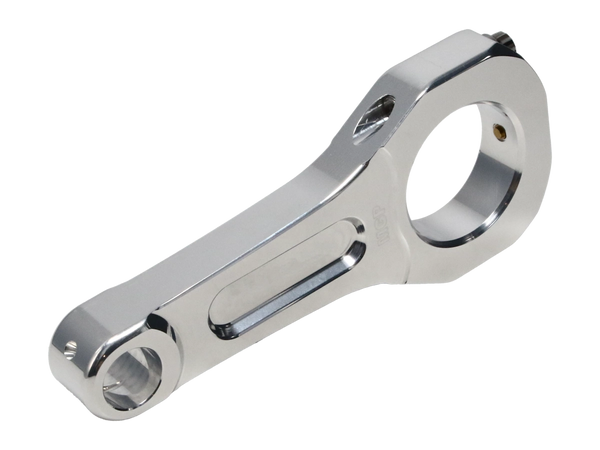

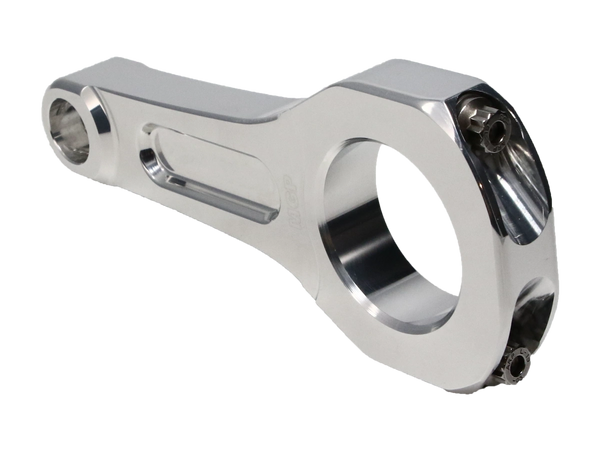

MGP Aluminum Rods

Machined from a proprietary billet aluminum material, MGP rods feature massive strength, durability, and precision in a lightweight package. Unique features such as full radial serrations ensure zero cap movement in the most demanding environments and a proprietary MGP Hard Bore small-end process reduces wear and bore deformation.

• Micro-finishing: Micro-finish processing in the small end bore extends the lifespan of the rod. Tolerance of the wrist pin is held to .0002 regarding size, roundness, and taper.
• Billet Aluminum: Machined from proprietary billet material providing superior strength and durability.
• Precision Lightening: FEA Modeled to reduce weight while increasing strength via precision CNC machining.
• Integrated Locking Serration: I.L.S. system on the rod cap and rod main body ensures precise alignment and prevents cap walk.
• Washer Integration: Integrated hat washer assembly is retained by connecting rod cap for easy installation.
• Precision Honing: Journal bore precision machined holding tolerance .0002 regarding size, roundness, and taper.

MGP-SBF-5400

MGP-SBF-6125

MGP-SBF-6200

MGP-SBF-6200-990

MGP-SBF-6250

MGP-SBF-6250-990
