9.5" Shortblocks

9.5" Shortblocks

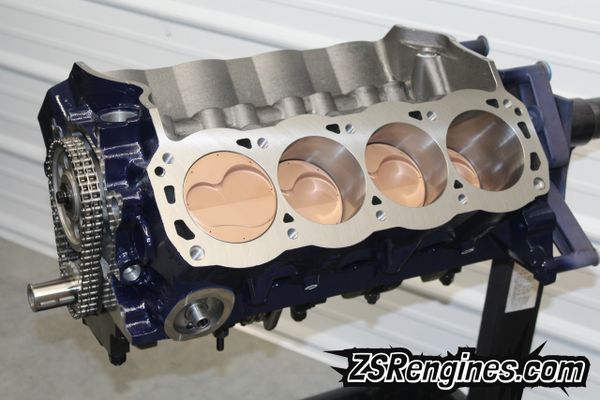

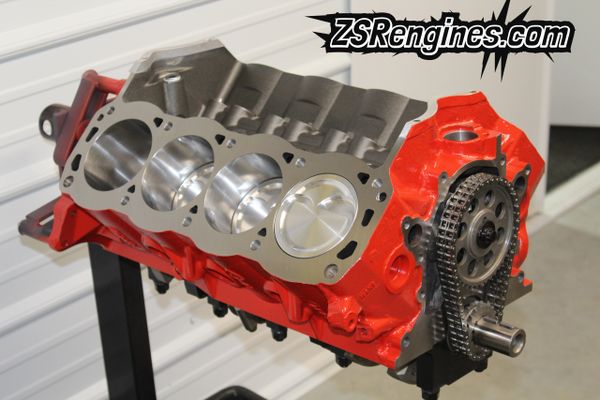

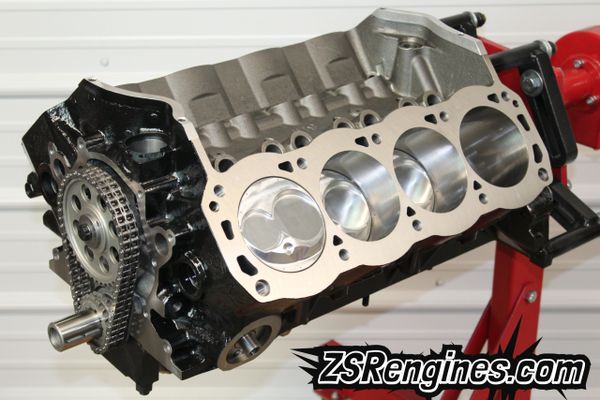

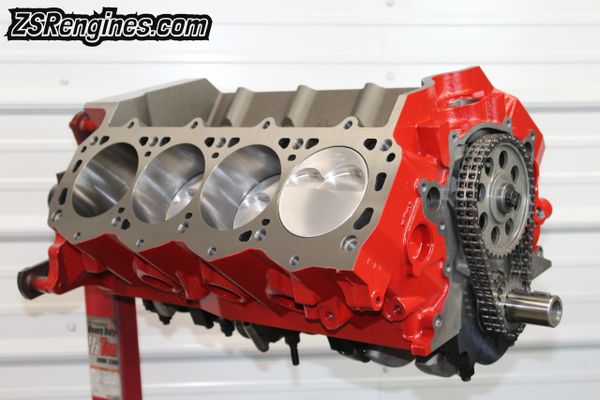

ZSR Dart-Based 9.5" Shortblocks.  Full custom builds, no mass produced engines. Whether you want to make 500hp or 2000hp, we can get a package together to meet your goals. Name-brand, quality parts ONLY

Fully Machined IN-HOUSE
-Resurfaced with BHJ fixture, MLS compatible finish
-Bored
-Torque Plate Honed on Sunnen CV616 and surface checked with profilometer
-Line Honed with ARP main studs
-Rotating Assembly balanced on CWT Multi-Bal 5000

Included Parts:
-Dart Coated Cam Bearings
-Clevite H-Series Bearings
-FelPro Rear Main Seal
-ARP main studs
-Painted your color of choice

Block Options:
-DART SHP
-DART Sportsman
-DART Iron Eagle

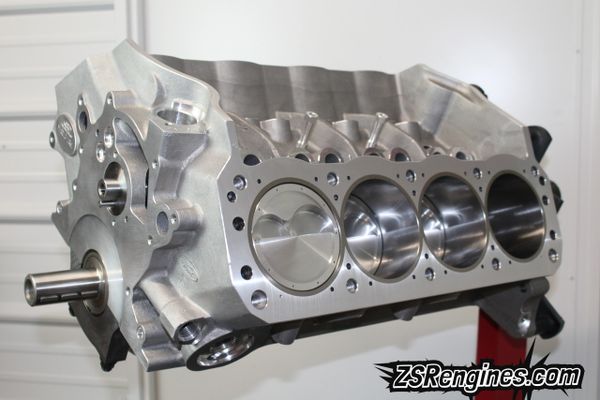

-FORD RACING Aluminum Z351

Crankshaft Options:
-Lunati VooDoo 4340 forged Crankshaft, Internally balanced (most popular option)
-Scat 4340 forged Crankshaft, Internally Balanced, May require heavy metal to balance.
-Molnar 4340 Forged Crankshaft, Internally Balanced
-Callies Magnum 4340, USA forging

**Heavy metal price calculated once rotating assembly is balanced**

Connecting Rod Options:
-Eagle H-Beam Connecting Rods w/ARP8740 or ARP2000
-Scat H-Beam Connecting rods w/ARP8740 or ARP2000
-Oliver Billet I-Beam Connecting Rods
-Callies Compstar H-Beam rods wARP2000 bolts
-Molnar Billet H-Beam rods w/ARP2000 bolts

Piston Options:

ZSR Custom Racetec Offerings:
-RaceTec/ZSR Custom 2618 forged pistons, Flat Top, Twisted Wedge or Inline Valve Reliefs
-RaceTec/ZSR Custom 2618 forged pistons, 20cc Dish, Twisted Wedge or Inline Valve Reliefs
-RaceTec/ZSR Custom 2618 forged pistons, 30cc Dish, Twisted Wedge or Inline Valve Reliefs

***ZSR can do a full custom piston for any cylinder head and/or dome/dish not listed***

-Wiseco 2618 forged pistons (coated skirts), Flat Top, Twisted Wedge or Inline Valve Reliefs
-Wiseco 2618 forged pistons (coated skirts), 32cc Dish, Twisted Wedge or Inline Valve Reliefs

**We have Diamond make our pistons with .043-.043-3mm ring packages**
-Diamond 2618 Forged Pistons, Flat Top, Twisted Wedge or Inline Valve Reliefs
-Diamond 2618 Forged Pistons, 23cc Dish, Inline Valve Reliefs (4.030 or 4.040 bore ONLY)
-Diamond 2618 Forged Pistons, 36cc Dish, Inline Valve Reliefs
-Diamond 2618 Forged Pistons, 27cc Dish, Twisted Wedge Valve Reliefs
-Diamond 2618 Forged Pistons, 41cc Dish, Twisted Wedge Valve Reliefs
-Diamond 2618 Forged Pistons, 5cc Dome, Inline Valve Reliefs
-Diamond 2618 Forged Pistons, 6cc Dome, Twisted Wedge Valve Reliefs

**Upgrade to Tool Steel Pins Available**

Piston Rings:
-Standard on RaceTec pistons is the Mahle HV385 1-1-2mm ring package. This is an extremely thin, low-drag setup with a steel top ring, steel napier second ring, CP20 2mm oil ring. Great for NA or Power Adders
-Standard on Wiseco pistons is the Wiseco GFX 1.2-1.2-3mm ring package. Steel top, napier second. NA or Power Adder
-Standard on Diamond pistons is TOTAL SEAL AP Ringset, .043-.043-3mm. Steel Top, Napier Second. NA or Power Adder

**We can change piston rings to suite any build**

Custom Camshaft Package:
This includes a custom ground, billet HYD roller or Solid Roller camshaft (spec'd 100% for your combination), a billet Rollmaster timing set w/torrington bearing, machined cam retainer plate, and ARP cam bolt. Installed and degreed.

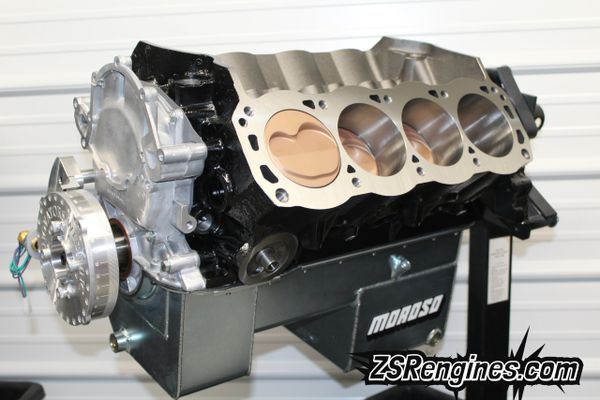

Oil Pan Package: Includes a Moroso 20520 pan, Moroso pickup, M83 or M83HV oil pump (blueprinted at ZSR), ARP oil pump bolts, ARP pump driveshaft, Milodon Oil Pan Studs, New timing cover, Fel-Pro timing cover gasket and seal, and Ford Racing One Piece oil pan gasket. INSTALLED

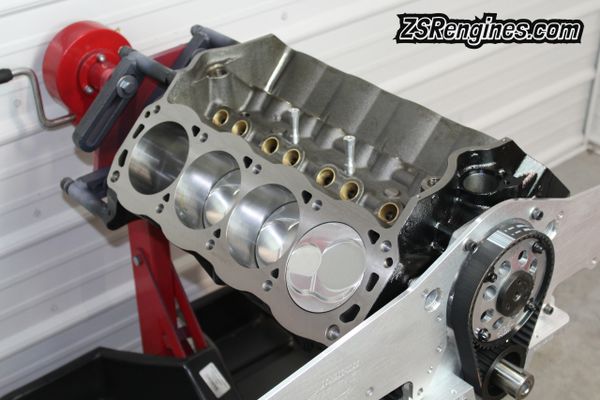

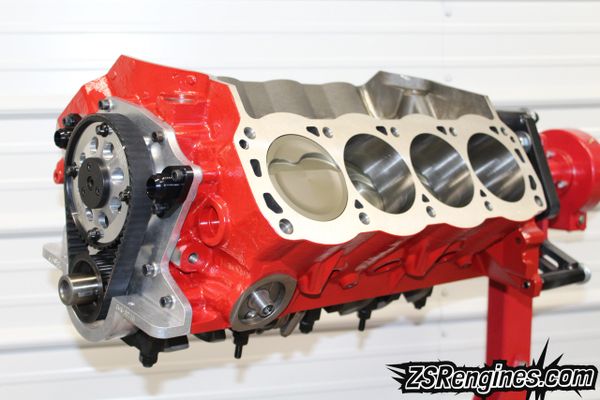

MANY options available that are not listed. We can do 55mm cam bores, .903" lifter bores, O-Ring blocks, ANY cylinder head that is available on the market, belt drives, carburetors, different ring packages, custom oil pans. Whatever you need, we can do.


PAYMENT PLAN AVAILABLE

**Shipping calculated once order is ready to ship**

To see a gallery of some of our builds, click HERE
$5,299.00 $5,100.00
